Product name

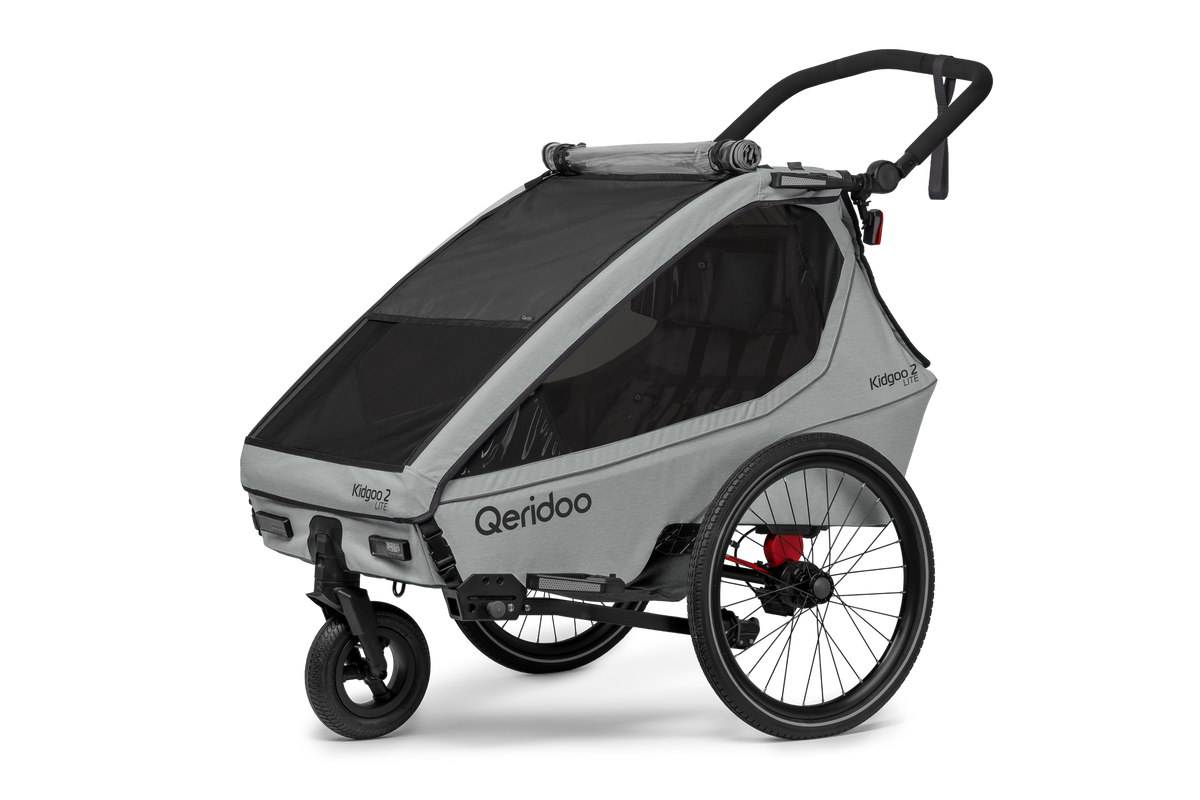

Kidgoo 2 Lite
Article numbers
- Q-KGL2-26-IG
- Q-KGL2-26-NB
- Q-KGL2-26-SG
- Q-KGL2-26-TG
Product description
Kidgoo Lite stands for thoughtful simplicity: safe features, flexible use, and exactly the equipment you need in everyday life.
Intended use
The Qeridoo is designed as a bike trailer and equipped with an additional Buggy Mode and Walker Mode.
The Qeridoo is intended exclusively for private transport of one or two children on paved paths and must not be used under competition conditions. Luggage may also be carried in the compartments provided, as long as the permissible weight is observed and the luggage is safely stowed with even load distribution. Before using the Qeridoo, check which local regulations apply and how the product may be used.
Operation on unpaved terrain, transporting luggage in the passenger compartment, transporting animals, and
commercial use are not permitted. The specified performance limits must be strictly observed and checked before each use. Children up to a maximum height of 116.5 cm may be transported. Install and use only original accessories and spare parts manufactured or recommended by Qeridoo. The use of other products, as well as any further manipulation carried out without the manufacturer’s express written approval, will void liability in the event of accidents and defects.
Improper use
The Qeridoo must not be used for commercial purposes or under competition conditions. Careful riding must always be ensured. This product is not suitable for jogging or skating without a jogger wheel. Jogger mode and skater mode are not included in the scope of the stroller certification.
Technical data
- Length trailer mode: 158 cm
- Empty weight trailer mode: 18.5 kg
- Maximum width: 81 cm
- Push handle adjustment range: 59.5 – 124 cm
- Boot volume: 46 l
- Maximum body height: 116.5 cm
- Folded dimensions assembled (L x W x H): 109 x 80 x 43.5 cm
- Packaging dimensions (L x W x H): 102.5 x 32.5 x 66.5 cm
- Permissible total weight (Qeridoo + children + luggage): 60 kg
- Maximum payload (children + luggage): 41.5 kg
- Maximum payload in boot (luggage): 5 kg
- Maximum payload in footwell (luggage): 1 kg
- Maximum weight of small storage bags: 0.5 kg
- Maximum weight per child: 22 kg
- Maximum weight of both children: 41.5 kg
- Age: 6 months – 6 years
- Permissible nose weight range (at tow bar head): 0 – 8 kg
- Minimum ambient temperature: -10°C
- Towing vehicle type: bicycle, pedelec / e-bike (assistance up to 25 km/h)
- Maximum permissible top speed: 20 km/h, max. 7 km/h in curves
- Rear wheel size (towing vehicle): 25" – 29" (20" – with tow bar for 20" bicycles (accessories))
When using accessories, their weight must be deducted from the payload. The empty weight of the Qeridoo with installed accessories plus payload must not exceed the permissible total weight. According to StVZO (German Road Traffic Licensing Regulations | valid in Germany), a maximum total weight of 40 kg applies for unbraked trailers.
Safety and warning instructions
WARNING!
- Keep children away from the Qeridoo during assembly. When handling moving components, make sure you do not pinch your hands or fingers. Make sure children are out of reach when unfolding and folding the Qeridoo to avoid injury.
- Packaging materials and protective caps must be removed and disposed of according to the environmental guidelines applicable in your region.
- The recommended tightening torques can be found at the following link: qeridoo.de/go/drehmomente
- The safety and accident prevention regulations as well as legal provisions applicable in your region, such as road traffic regulations, must also be observed and take priority in case of doubt. Also inform yourself about country-specific regulations and traffic rules if you want to take the Qeridoo on trips abroad. Make sure the Qeridoo is used only by people who are suitable to operate it. Users must have fully read and understood the user manual.
- Do not load the trailer beyond the specified maximum weight. Distribute the load evenly. Observe the information in the manual on
loading, permissible total weight, nose weight range (at tow bar head), and rated load (maximum payload). Overloading affects road handling and braking performance and can lead to accidents. - The bicycle’s handling changes significantly when pulling a trailer. Ride especially carefully downhill, in curves, and when braking. The attached trailer significantly increases the bicycle’s braking distance. Always keep a sufficient safety distance. Also observe the information in the manual.
- Install and use only original accessories
and spare parts manufactured or recommended by Qeridoo. The use of other products voids liability. When using accessories, their weight must be deducted from the permissible total weight. The empty weight with installed accessories
plus payload must not exceed the permissible total weight. Also observe the information in the manual. - Observe the specified nose weight (minimum and maximum nose weight). The nose weight is the force acting on the bicycle’s trailer coupler. Also observe the information on determining the nose weight in the manual.
- The use of a trailer in combination with an e-bike (EPAC) may be restricted or prohibited nationally.
- Buckle the child in with the restraint system during every ride. Make sure the harness fits correctly and all belt buckles are engaged. Explain to the children before every ride that they must behave appropriately and that unfastening the safety harnesses, excessive rocking, or leaning out is strictly prohibited. Get off the bicycle at curbs and pass them only slowly. Only set off when
all children are properly buckled in and wearing a correctly fitting bicycle helmet. - The inner part of the 3-in-1 canopy must be closed during the ride to protect children from insects and small stones with the integrated insect protection net. For protection from
exhaust fumes, the window foil should also be closed in road traffic. - Only one child may be transported in the One-seater and a maximum of two children in the Two-seater. They must be secured with the harness system and wear suitable clothing and a correctly fitting bicycle helmet. In some countries, wearing a helmet is required by law. Balanced load distribution must be ensured. Take the maximum weight and height information from the table in the “Performance limits” section of your Qeridoo manual.
- The seat unit is not suitable for children under 6 months. Always use the restraint system.
- Never exceed the maximum child weight per child specified for your model.
- Never leave children unattended in the Qeridoo and make sure they feel comfortable. Take regular breaks on longer rides so the children can move around. Ensure sufficient fluid intake. Ensure good ventilation and adapt the children’s clothing to weather conditions and the temperature inside.
- Do not let the child play with the product.
- Make sure the restraint system is correctly adjusted for the child’s weight and body height. Regularly check whether the harness still fits correctly.
- This product is not suitable for jogging or skating without a jogger wheel and hand brake. With the optional jogger set, the instructions in the corresponding accessory manual apply.
DANGER!
- Before use, check whether the bicycle is suitable for pulling a trailer. Observe the bicycle manufacturer’s instructions for use. Use of a Qeridoo on bicycles with a carbon rear frame is not recommended. The additional load at the connection between frame and coupler can damage the frame. Pulling a trailer with an unsuitable bicycle can lead to loss of control and serious accidents.
- Bike trailers may be used only for the purpose intended by the manufacturer. Any improper use is dangerous and not permitted. Improper use can lead to serious injury or death.
- Always operate and secure the connection device (coupler) according to the instructions. An incorrectly secured connection device can detach during the ride and cause a serious accident.
- Before each use, make sure all locks are engaged. Also wrap the safety strap of the tow bar around the tow bar so that it does not hang down in the ready position and cannot get caught on obstacles or drag.
- Before each use on the bicycle, check the coupler connection and make sure the safety strap is attached. Also make sure it cannot get into moving parts of the towing bicycle. Do not use a washer or similar at the connection point between bicycle frame and coupler, as this can impair the stability of the connection.
- Attach lighting equipment (e.g. back light, reflectors) correctly to the trailer according to the instructions. Use only suitable lights at the intended mounting points. The manufacturer’s enclosed information must be observed for operating the back light. In all operating modes, the back light must be switched on in darkness or poor visibility. In trailer mode, the pennant must also be attached (StVZO). In general, we recommend using the pennant. Failure to observe this can lead to serious accidents.
- Before every ride, make sure the Qeridoo is in proper and technically perfect condition. Before first use and regularly during further use, check all screw and split-pin connections for tight fit, especially the tow bar holder, spokes, and thru-axles of the wheels. Also check the connection device (coupler) for correct fit and proper function, and the frame for cracks, deformation, or other damage. Check the safety harnesses and restraint systems for proper condition and correct function, the lighting equipment and reflectors for complete and correct attachment, and the tires for condition and correct tire pressure. Make sure the folding mechanism is fully engaged. Check all wheels individually before every ride. Check by gently shaking and pulling whether they are securely engaged. They must not come loose by themselves. Also check the operational condition of the towing vehicle before every ride.
- Use a safety harness as soon as the child can sit independently.
- Before use, make sure all locks are engaged. Carry out a visual inspection and also check, if present, whether the side fixations are closed and the webbings on the back of the seat are tightened.
- Make sure the child is out of reach when unfolding and folding the trailer to avoid injury.
- Always make sure the parking brake is engaged when placing the child in or taking the child out. Always make sure the parking brake audibly engages when operated. If it does not fully engage, the wheels are not securely locked and the Qeridoo can roll away. Any loads attached to the push handle and/or to the back of the backrest and/or to the sides impair the stability of the Qeridoo.
Care and storage instructions
Care
After each use:
- Clean the inside of the cabin.
- Watch for heavy soiling and remove it as soon as possible.
After severe weather exposure:
- Thoroughly clean the inside and outside of the cabin.
- Treat all sliding or moving parts with silicone spray.
- Fold the cabin only when it has been cleaned and is completely dry.
- Wipe the frame and the entire canopy dry.
When not in use:
- Store the Qeridoo only in places with a storage temperature between -23 °C and a maximum of 65 °C.
- The stroller should only be stored when dry.
- The storage location should be dry, well ventilated, and protected from direct sunlight.
- At high storage temperatures, the wheels should be stored separately from the cabin, as the rubber of the wheels can cause odors.
- Use a Qeridoo folding garage if the Qeridoo has to be stored outdoors.
Maintenance
Monthly (or every 200 km):
- Check the textile cover, all closures, and the seats and safety harnesses for cracks, wear, and missing parts.
- Check all frame tubes and all connecting pieces and fastening components for signs of wear and damage.
- Check all screw and split-pin connections for tight fit.
- Clean the thru-axles of the wheels. Also spray the thru-axles with silicone spray.
Every six months (or every 500 km):
- Treat all sliding and moving parts with silicone spray.
- Thoroughly clean the inside and outside of the cabin.
- Check the spoke tension; it must be between 90 and 100 kg.
Every 2 years (or every 2,000 km):
- Replace the leaf springs, as they are wear parts.
Every 3 years (or every 3,000 km):
- Have a complete inspection carried out by a qualified workshop at least every three years.
Every 4 years (or every 4,000 km):
Conformity & Safety
This product was developed and manufactured in accordance with the applicable EU safety requirements. The materials used comply with the relevant safety and quality standards.
Manufacturer information
Qeridoo GmbH
Industriepark Nord 100
53567 Buchholz, Germany
www.qeridoo.de
Email: info@qeridoo.de
Fax: +49 (0) 2683 9451925
