Product designation

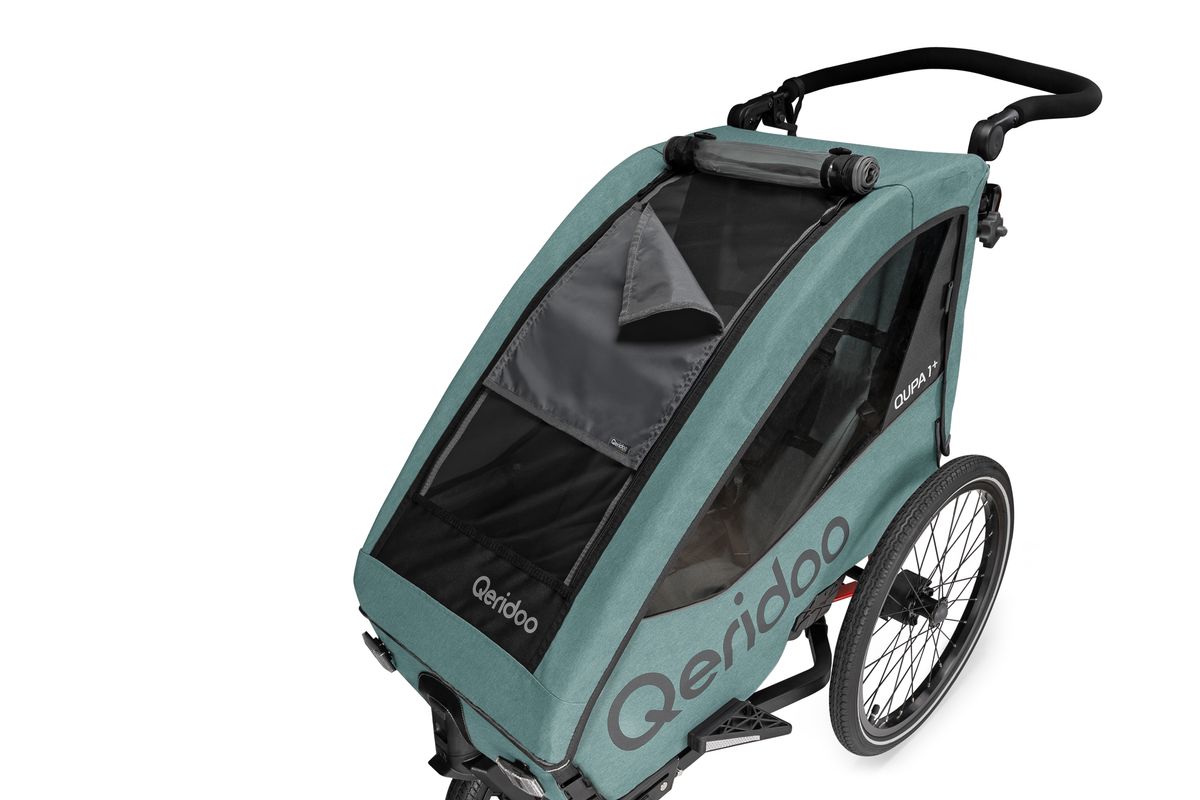

QUPA 1 Plus Mineral Blue
Article numbers
Product description

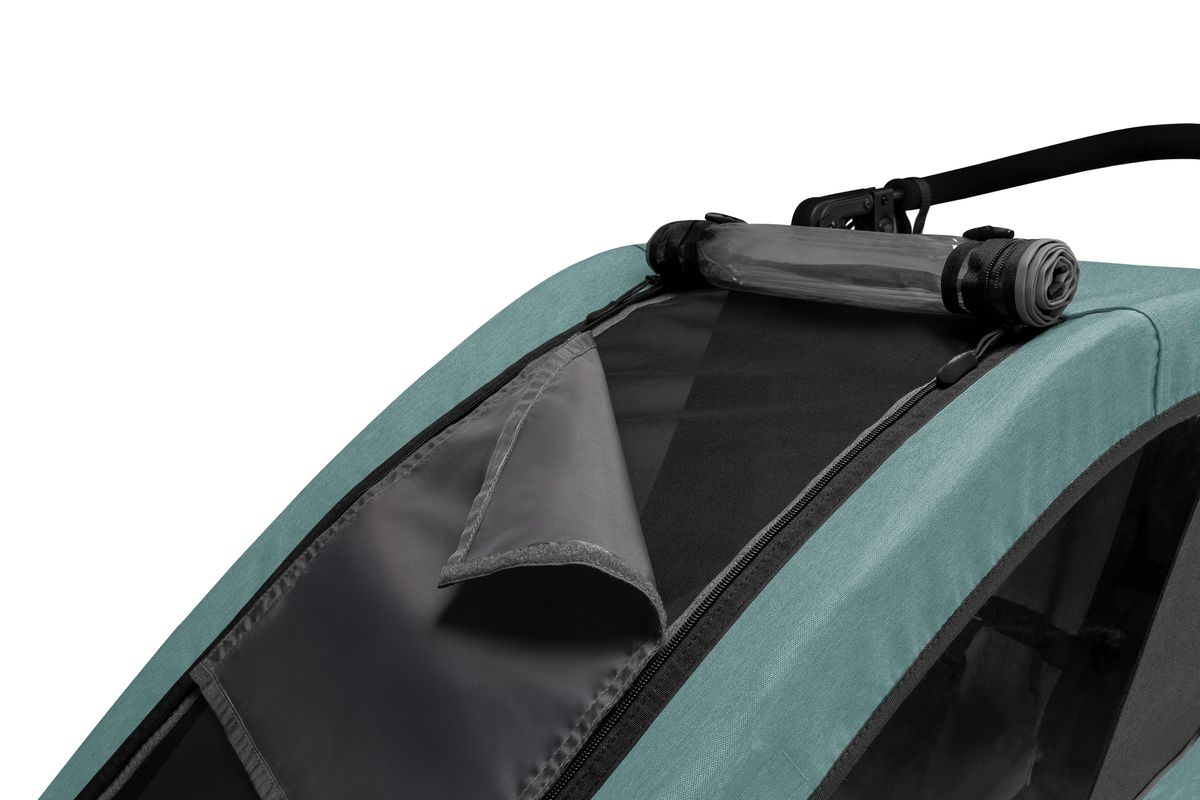

The QUPA Plus is comfortable, practical and ready for everyday life. With an adjustable headrest, air-filled buggy wheel, leaf spring suspension system and 3-in-1 canopy, it is your hero for price and performance.
Intended use
The Qeridoo is designed as a bike trailer and equipped with an additional buggy and walker mode.
The Qeridoo is intended exclusively for the private transport of one or two children on paved paths and must not be used under competition conditions. Additionally, luggage may be carried in the designated compartments, provided that the permissible weight is observed and the luggage is securely stowed with an even load distribution. Before using the Qeridoo, check which local regulations apply and how the product may be used.
Operation on unpaved terrain, the transport of luggage in the passenger compartment, the transport of animals, as well as
commercial use, are not permitted. The stated performance limits must be strictly observed and checked before every use. Children may be transported up to a maximum height of 105 cm. Only fit and use original accessories and spare parts manufactured or recommended by Qeridoo. The use of other products, as well as any further manipulation carried out without the express written approval of the manufacturer, will lead to exclusion of liability in the event of accidents and defects.
Improper use
The Qeridoo must not be used for commercial purposes or under competition conditions. A careful riding style must always be ensured. This product is not suitable for jogging or skating without a jogger wheel. Jogger mode and skater mode are not included in the stroller certification.
Technical data
- Length trailer mode: 140 kg
- Empty weight trailer mode: 14 kg
- Maximum width: 67 cm
- Handlebar adjustment range: 68 - 125 cm
- Boot volume: 30 l
- Maximum body height: 105 cm
- Folded dimensions assembled (L x W x H): 105 x 62 x 36 cm
- Packaging dimensions (L x W x H): 101 x 38 x 57.5 cm
- Permissible total weight (Qeridoo + children + luggage): 50 kg
- Maximum payload (children + luggage): 36 kg
- Maximum payload in the boot (luggage): 5 kg
- Maximum payload in the footwell (luggage): 1 kg
- Maximum weight small storage bags: 0.5 kg
- Maximum weight per child: 22 kg
- Age: 6 months - 4 years
- Permissible nose weight range (at tow bar head): 0 - 8 kg
- Minimum ambient temperature: -10 °C
- Towing vehicle type: bike, pedelec / e-bike (assistance up to 25 km/h)
- Maximum permissible top speed: 20 km/h, in curves max. 7 km/h
- Rear wheel size (towing vehicle): 25" - 29" (20" with tow bar for 20" bikes as accessory
When using accessories, these must be deducted from the payload. The empty weight of the Qeridoo with mounted accessories plus payload must not exceed the permissible total weight. According to StVZO (Straßenverkehrs-Zulassung-Ordnung — road traffic licensing regulation | valid in Germany), a maximum total weight of 40 kg applies to unbraked trailers.
Safety and warning instructions
WARNING!
- The safety and accident prevention regulations applicable in your region, as well as legal regulations such as the Road Traffic Regulations (StVO), must be additionally observed and, in case of doubt, take priority. Also inform yourself about country-specific regulations and traffic rules if you want to take the Qeridoo on trips abroad. Ensure that the Qeridoo is only used by persons who, as defined below, are suitable to operate it. Users must have read and understood the present user manual completely.
- Packaging materials and protective caps must be removed and disposed of in accordance with the environmental guidelines applicable in your region.
- The recommended tightening torques can be found at the following link: qeridoo.de/go/drehmomente
- All information on "Care & maintenance" must be observed. Corrosion cannot be entirely ruled out. De-icing salts can lead to stress corrosion cracking.
- Never leave the child unattended. Do not let the child play with the product. The Qeridoo is not a child's toy and must not be misused as such. Accordingly, it is not permitted to attach the Qeridoo to a child's bike.
- Keep children away from the Qeridoo during assembly. When handling moving parts, take care not to pinch your hands and fingers. Before first use, check all screw and split-pin connections for a tight fit. Make sure that the child is out of reach when folding and unfolding the Qeridoo to avoid injuries.
- This seat unit is not suitable for children under 6 months. Always use the restraint system.
- This product is not suitable for jogging or skating without a jogger wheel. The supplied 14'' jogger wheel enables skating & jogging. Jogger mode and skater mode are not included in the stroller certification.
- Always ensure that the parking brake is engaged when placing the child in or taking the child out. Any loads attached to the handlebar and/or to the back of the backrest and/or to the sides impair the stability of the Qeridoo.
- Only fit and use original accessories and spare parts manufactured or recommended by Qeridoo. The use of other products leads to exclusion of liability.
- Signs of wear may occur at the connection point between the bike frame and the coupler. This does not constitute grounds for complaint. Do not use any tool that has previously been in contact with conventional steel. The smallest steel particles could lead to contact corrosion.
- For the operation of the rear light, the enclosed information from the manufacturer must be observed.
- Before use, ensure that the brake works properly. Despite correct assembly procedure, the disc brake may start to drag. Readjust the brake callipers or have your trusted bike workshop help you.
DANGER!
- Before every use, make sure that all locks are engaged. Also wrap the safety strap of the tow bar around the tow bar so that it does not hang down in the ready position and cannot catch or drag on obstacles.
- Only one child may be transported in the one-seater and a maximum of two children in the two-seater. They are secured by the harness system and wear suitable clothing as well as a bicycle helmet. An even load distribution must be ensured.
- The Qeridoo must not be used after an accident! Even if no damage is externally visible, the protective effect may be impaired.
- Before every ride, make sure that the Qeridoo is in proper and technically perfect condition. Carry out a visual check and pay particular attention to the section "Am I ready to go?". Also check that the side fixation is closed and the straps at the back of the seat bench are tightened.
- Always make sure that the safety strap is fastened before you use the Qeridoo in trailer mode. Additionally, take care that it cannot get into moving parts of the towing bike.
- Do not use any washers or similar at the connection point between the bike frame and the coupler, as this can impair the stability of the connection.
- Always make sure that the parking brake foot lever engages audibly when activated. If it does not fully engage, the wheels are not securely locked and the Qeridoo may roll away.
Care and storage instructions
Care
After every use:
- Clean the interior of the cabin.
- Watch out for heavy soiling and remove it as soon as possible.
After strong weather influences:
- Carry out a thorough interior and exterior cleaning of the cabin.
- Care for all sliding or moving parts with silicone spray.
- Only fold the cabin together when it is cleaned and completely dry.
- Wipe the frame and the entire cover dry.
When not in use:
- Only store the Qeridoo in locations with a storage temperature between -23 °C and a maximum of 65 °C.
- The trailer should only be stored when dry.
- The storage location should be dry, well ventilated and protected from direct sunlight.
- At high storage temperatures, the wheels should be kept separate from the cabin, as the rubber of the tyres can cause odour formation.
- Use a Qeridoo folding garage if the Qeridoo must be stored outdoors.
Maintenance
Monthly (or every 200 km):
- Check the textile cover, all closures as well as the seats and safety harnesses for tears, wear and missing parts.
- Check all frame tubes as well as all connectors and fastening components for signs of wear and damage.
- Check all screw and split-pin connections for a tight fit.
- Clean the thru-axles of the wheels. Additionally spray the thru-axles with silicone spray.
Every six months (or every 500 km):
- Care for all sliding and moving parts with silicone spray.
- Carry out a thorough interior and exterior cleaning of the cabin.
- Carry out a check of the spoke tension, which must be between 90 and 100 kg.
Every 2 years (or every 2,000 km):
- Replace the leaf springs, as they are a wear part.
Every 3 years (or every 3,000 km):
- Have a complete inspection carried out by a specialist workshop at least every three years.
Every 4 years (or every 4,000 km):
Conformity & Safety
This product has been developed and manufactured taking into account the applicable EU safety requirements. The materials used comply with the relevant safety and quality standards.
Manufacturer information
Qeridoo GmbH
Industriepark Nord 100
53567 Buchholz, Germany
www.qeridoo.de
E-mail: info@qeridoo.de
Fax: +49 (0) 2683 9451925
