Product designation
Nacho M
Article numbers
Product description

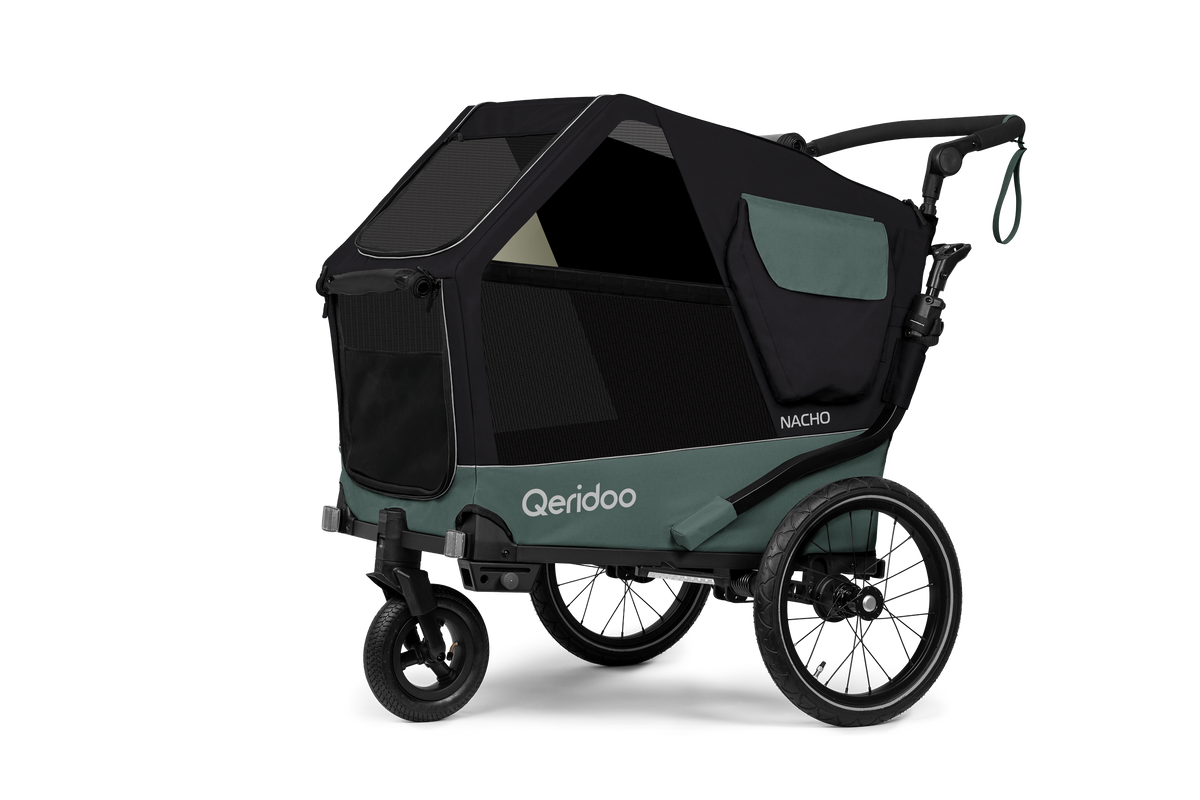

The Nacho dog trailer takes your four-legged friend safely and comfortably on tour. With suspension, dog bed, 360° buggy wheel and becco coupler system, you stay flexible.
Intended use
The Qeridoo is designed as a bike trailer and equipped with an additional buggy and walker mode.
The Qeridoo is intended exclusively for the private transport of one dog on paved roads and must not be used under competition conditions. Luggage may additionally be carried in the compartments provided, as long as the permissible weight is observed and the luggage is stowed securely with even load distribution. Before using the Qeridoo, check which local regulations apply and how the product may be used.
Not permitted are operation on unpaved terrain, transporting luggage in the box, transporting children, and commercial use. The stated performance limits must be strictly observed and checked before every use. Only fit and use original accessories and spare parts manufactured or recommended by Qeridoo. Using other products, as well as any further manipulation carried out without the manufacturer's express written consent, will void liability in case of accidents and defects.
Improper use
The Qeridoo must not be used for commercial purposes or under competition conditions. A defensive riding style must be ensured at all times. Without a jogger wheel, this product is not suitable for jogging or skating.
Technical data
- Length trailer mode: 157 cm
- Empty weight trailer mode: 15 kg
- Maximum width: 78 cm
- Handlebar adjustment range: 68 – 113 cm
- Folded dimensions assembled (L x W x H): 85.5 x 57.5 x 24 cm
- Cabin height: 99 cm
- Entry height rear opening: 25.5 cm
- Rear entry opening: 47 x 44 cm
- Interior floor area: 46 x 74.5 cm
- Dog bed lying area: 43.5 x 65 cm
- Permissible total weight (Qeridoo + dog + luggage): 42 kg
- Maximum payload (dog + luggage): 27 kg
- Maximum weight outer pockets: 1 kg each
- Maximum dog weight: 25 kg
- Permissible nose weight range (at tow bar head): 3 – 11 kg
- Minimum ambient temperature: -10 °C
- Towing vehicle type: bike, pedelec / e-bike (assistance up to 25 km/h)
- Maximum permissible top speed: 15 km/h, in curves max. 7 km/h
- Rear wheel size (towing vehicle): 25" – 29" (20" – with tow bar for 20" bikes (accessory))
When using accessories, their weight must be deducted from the payload. The empty weight of the Qeridoo with mounted accessories plus payload must not exceed the permissible total weight. According to the StVZO (German Road Traffic Licensing Regulations | valid in Germany), a maximum total weight of 40 kg applies to unbraked trailers.
Safety and warning instructions
WARNING!
- The safety and accident prevention regulations applicable in your region, as well as legal provisions such as the Road Traffic Regulations (StVO), must additionally be observed and, in case of doubt, take precedence. Also inform yourself about country-specific regulations and traffic rules if you plan to take the Qeridoo on travels abroad. Ensure that the Qeridoo is only used by persons who, as defined below, are suitable for its operation. Users must have fully read and understood this user manual.
- Packaging materials must be removed and disposed of in accordance with the environmental guidelines applicable in your region.
- Never leave your animal unattended. The Qeridoo is not a child's toy and must not be misused as such. Accordingly, it is not permitted to attach the Qeridoo to a child's bike.
- This product is not suitable for skating.
- Any loads attached to the handlebar and/or the rear and/or the sides impair the stability of the Qeridoo.
- Always ensure that the parking brake foot lever is engaged when placing the animal in or taking it out.
- Only fit and use original accessories and spare parts manufactured or recommended by Qeridoo. Using other products voids liability.
- For operation of the back light, observe the enclosed information from the manufacturer.
- Signs of wear may occur at the connection point between the bike frame and the coupler. This does not constitute grounds for complaint. Do not use any tool that has previously come into contact with ordinary steel. Even the smallest steel particles could lead to contact corrosion.
DANGER!
- Before every use, make sure that all locks are engaged. Also wrap the safety strap of the tow bar around the tow bar in such a way that, in the ready position, it does not hang down and cannot catch on obstacles.
- Always ensure that the safety strap is attached before you use the Qeridoo in trailer mode. Also make sure that it cannot get into moving parts of the towing bike.
- The Qeridoo must not be used any further after an accident! Even if no damage is visible from the outside, the protective effect may be impaired.
- Before every ride, satisfy yourself that the Qeridoo is in proper and technically perfect condition. Carry out a visual inspection and pay particular attention to the "Am I ready to go?" section.
- Do not use a washer or similar at the connection point between the bike frame and the coupler, as this can impair the stability of the connection.
- Always ensure that the parking brake foot lever audibly engages when it is activated. If it does not fully engage, the wheels are not securely locked and the Qeridoo can roll away.
- Always use both safety leashes in trailer mode. Safety leashes that are too long or loose can become a danger to your dog.
- Make sure that your dog's claws are trimmed and do not have excessively sharp edges, to avoid damage to the trailer from possible scratching.
- During the ride, keep all zippers, hook-and-loop fasteners and buckles closed.
- The roof of the Nacho is not suitable for transporting loads or as a seating surface for children.
- The safety leash is not suitable as a normal leash. Do not use the safety leash to secure your dog outside the trailer.
- When letting your dog out of the trailer, make sure that you have removed the safety leashes and that your dog is secured with your normal leash. Hectic, unsecured jumping out of the trailer can lead to the trailer tipping over and to dangerous situations, especially in traffic.
Care and storage instructions
Care
After every use:
- Clean the interior of the cabin.
- Watch for heavy soiling and remove it as soon as possible.
After strong weather exposure:
- Carry out a thorough inside and outside cleaning of the cabin.
- Treat all sliding or moving parts with silicone spray.
- Only fold the cabin when it is cleaned and completely dry.
- Wipe the frame and the entire cover dry.
When not in use:
- Only store the Qeridoo in places with a storage temperature in the range of -23 °C to a maximum of 65 °C.
- The trailer should only be stored in a dry condition.
- The storage location should be dry, well ventilated and protected from direct sunlight.
- At high storage temperatures, the wheels should be kept separately from the cabin, as the rubber of the tyres may cause odour formation.
- Use a Qeridoo folding garage if the Qeridoo must be stored outdoors.
Maintenance
Monthly (or every 200 km):
- Check the textile cover, all closures and the safety leashes for tears, wear and missing parts.
- Check all frame tubes as well as all connecting pieces and fastening components for signs of wear and damage.
- Check all screw and rivet connections for tight fit.
- Clean the thru-axles of the wheels. Additionally spray the thru-axles with silicone spray.
Every six months (or every 500 km):
- Treat all sliding and moving parts with silicone spray.
- Carry out a thorough inside and outside cleaning of the cabin.
- Check the spoke tension, which must be between 90 and 100 kg.
Every 3 years (or every 3,000 km):
- Have a complete inspection carried out by a specialist workshop at the latest every three years.
Every 4 years (or every 4,000 km):
Conformity & Safety
This product has been developed and manufactured in consideration of the applicable EU safety requirements. The materials used comply with the relevant safety and quality standards.
Manufacturer information
Qeridoo GmbH
Industriepark Nord 100
53567 Buchholz, Germany
www.qeridoo.de
E-mail: info@qeridoo.de
Fax: +49 (0) 2683 9451925
