Qeridoo GmbH
Industriepark Nord 100
53567 Buchholz, Germany
Phone: +49 (0)2683 9451925 (hotline:
Mon.–Thu.
09:00–12:00 and 14:00–16:00)
Fax: +49 (0)2683 9466577
Email: info@qeridoo.de
Website: www.qeridoo.de
Product designation
Qubee
Article numbers
Product description

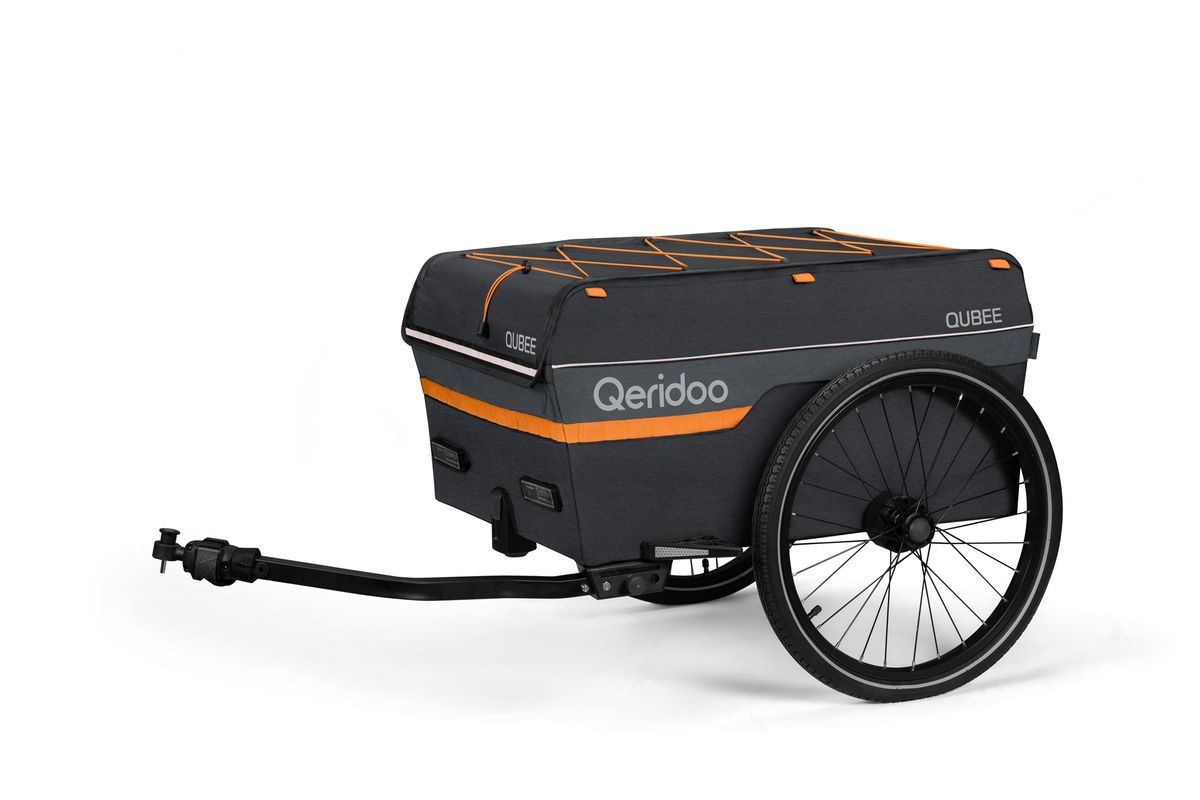

Fantastic meets Cargo: the Qubee makes transport easy. Whether groceries, luggage or drinks crates — your practical cargo trailer for everyday life and cargotastic adventures.
Intended use
The Qeridoo is designed as a bike trailer and can additionally be converted into a hand wagon with accessories.
The Qeridoo is intended exclusively for private use on paved roads and must not be used under competition conditions. Luggage may additionally be carried in the compartments provided, as long as the permissible weight is observed and the luggage is stowed securely with even load distribution. Before using the Qeridoo, check which local regulations apply and how the product may be used.
Not permitted are operation on unpaved terrain, transporting children, transporting animals, as well as
commercial use. The stated performance limits must be strictly observed and checked before every use. Only fit and use original accessories and spare parts manufactured or recommended by Qeridoo. Using other products, as well as any further manipulation carried out without the manufacturer's express written consent, will void liability in case of accidents and defects.
Improper use
The Qeridoo must not be used for commercial purposes or under competition conditions. A defensive riding style must be ensured at all times.
Technical data
- Length trailer mode: 120 cm
- Empty weight trailer mode: 10 kg
- Maximum width: 71 cm
- Cabin height: 61.5 cm
- Folded dimensions assembled (L x W x H): 78 x 58 x 17.5 cm
- Packaging dimensions (L x W x H): 78 x 22.5 x 60.5 cm
- Permissible total weight (Qeridoo + luggage): 50 kg
- Maximum payload (luggage): 40 kg
- Maximum weight small storage bags (luggage): 0.5 kg

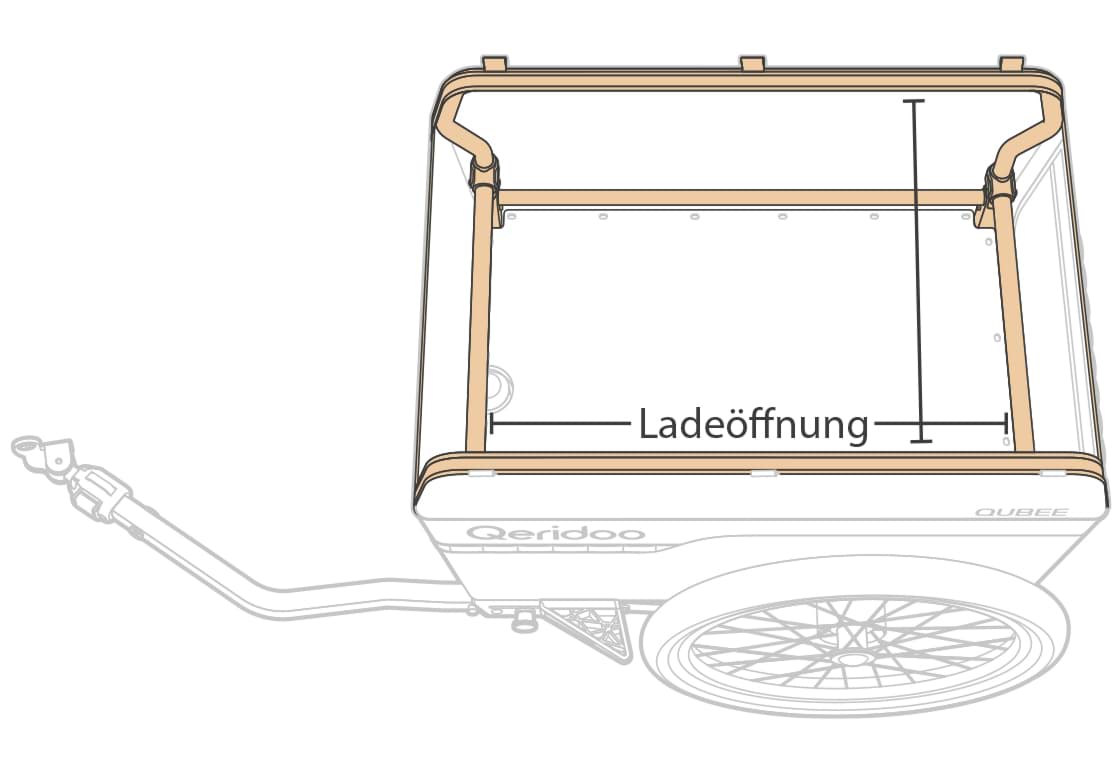

- Load area (L x W x H): 67 x 52 x 34 cm
- Packing volume: 130 l
- Permissible nose weight range (at tow bar head): 0 – 8 kg
- Minimum ambient temperature: -10 °C
- Towing vehicle type: bike, pedelec / e-bike (assistance up to 25 km/h)
- Maximum permissible top speed: 25 km/h, in curves max. 7 km/h
- Rear wheel size (towing vehicle): 25" – 29"
When using accessories, their weight must be deducted from the payload. The empty weight of the Qeridoo with mounted accessories plus payload must not exceed the permissible total weight.
Safety and warning instructions
WARNING!
- The safety and accident prevention regulations applicable in your region, as well as legal provisions such as the Road Traffic Regulations (StVO), must additionally be observed and, in case of doubt, take precedence. Also inform yourself about country-specific regulations and traffic rules if you plan to take the Qeridoo on travels abroad. Ensure that the Qeridoo is only used by persons who, as defined below, are suitable for its operation. Users must have fully read and understood this user manual.
- Packaging materials and protective caps must be removed and disposed of in accordance with the environmental guidelines applicable in your region.
- The recommended tightening torques can be found at the following link: qeridoo.de/go/drehmomente
- All information on "Care & Maintenance" must be observed. Corrosion cannot be completely ruled out. De-icing salts can lead to stress corrosion cracking.
- Signs of wear may occur at the connection point between the bike frame and the coupler. This does not constitute grounds for complaint. Do not use any tool that has previously come into contact with ordinary steel. Even the smallest steel particles could lead to contact corrosion.
- The Qeridoo is not a child's toy and must not be misused as such. Accordingly, it is not permitted to attach the Qeridoo to a child's bike.
- For operation of the back light, observe the enclosed information from the manufacturer.
DANGER!
- Before every use, make sure that the unfolding mechanism is properly engaged. Also wrap the safety strap of the tow bar around the tow bar in such a way that, in the ready position, it does not hang down and cannot catch or drag on obstacles.
- Before every ride, satisfy yourself that the Qeridoo is in proper and technically perfect condition. Carry out a visual inspection and pay particular attention to the "Am I ready to go?" section. Also check that all connecting parts are properly seated and that all straps are firmly tightened.
- Keep children away from the Qeridoo during assembly. When handling moving parts, take care not to pinch your hands and fingers. Before first use, check all screw and split-pin connections for tight fit.
- Always ensure that the safety strap is attached before you use the Qeridoo in trailer mode. Also make sure that it cannot get into moving parts of the towing bike.
- Do not use a washer or similar at the connection point between the bike frame and the coupler, as this can impair the stability of the connection.
- The Qeridoo must not be used any further after an accident! Even if no damage is visible from the outside, stability may be impaired.
Care and storage instructions
Care
After every use:
- Clean the interior of the Qubee.
- Watch for heavy soiling and remove it as soon as possible.
After strong weather exposure:
- Carry out a thorough inside and outside cleaning of the Qubee.
- Treat all sliding or moving parts with silicone spray.
- Only fold the Qubee when it is cleaned and completely dry.
- Wipe the frame and the entire cover dry.
When not in use:
- Only store the Qeridoo in places with a storage temperature in the range of -23 °C to a maximum of 65 °C.
- The trailer should only be stored in a dry condition.
- The storage location should be dry, well ventilated and protected from direct sunlight.
- At high storage temperatures, the wheels should be kept separately from the cabin, as the rubber of the tyres may cause odour formation.
- Use a Qeridoo folding garage if the Qubee must be stored outdoors.
Maintenance
Monthly (or every 200 km):
- Check the textile cover as well as all closures and straps for tears, wear and missing parts.
- Check all frame tubes as well as all connecting pieces and fastening components for signs of wear and damage.
- Check all screw and split-pin connections for tight fit.
- Clean the thru-axles of the wheels. Additionally spray the thru-axles with silicone spray.
Every six months (or every 500 km):
- Treat all sliding and moving parts with silicone spray.
- Carry out a thorough inside and outside cleaning of the Qubee.
- Check the spoke tension, which must be between 90 and 100 kg.
Every 3 years (or every 3,000 km):
- Have a complete inspection carried out by a specialist workshop at the latest every three years.
Every 4 years (or every 4,000 km):
Conformity & Safety
This product has been developed and manufactured in consideration of the applicable EU safety requirements. The materials used comply with the relevant safety and quality standards.
Manufacturer information
Qeridoo GmbH
Industriepark Nord 100
53567 Buchholz, Germany
www.qeridoo.de
E-mail: info@qeridoo.de
Fax: +49 (0) 2683 9451925
