Qeridoo GmbH
Industriepark Nord 100
53567 Buchholz, Germany
Phone: +49 (0)2683 9451925 (hotline:
Mon.–Thu.
09:00–12:00 and 14:00–16:00)
Fax: +49 (0)2683 9466577
Email: info@qeridoo.de
Website: www.qeridoo.de

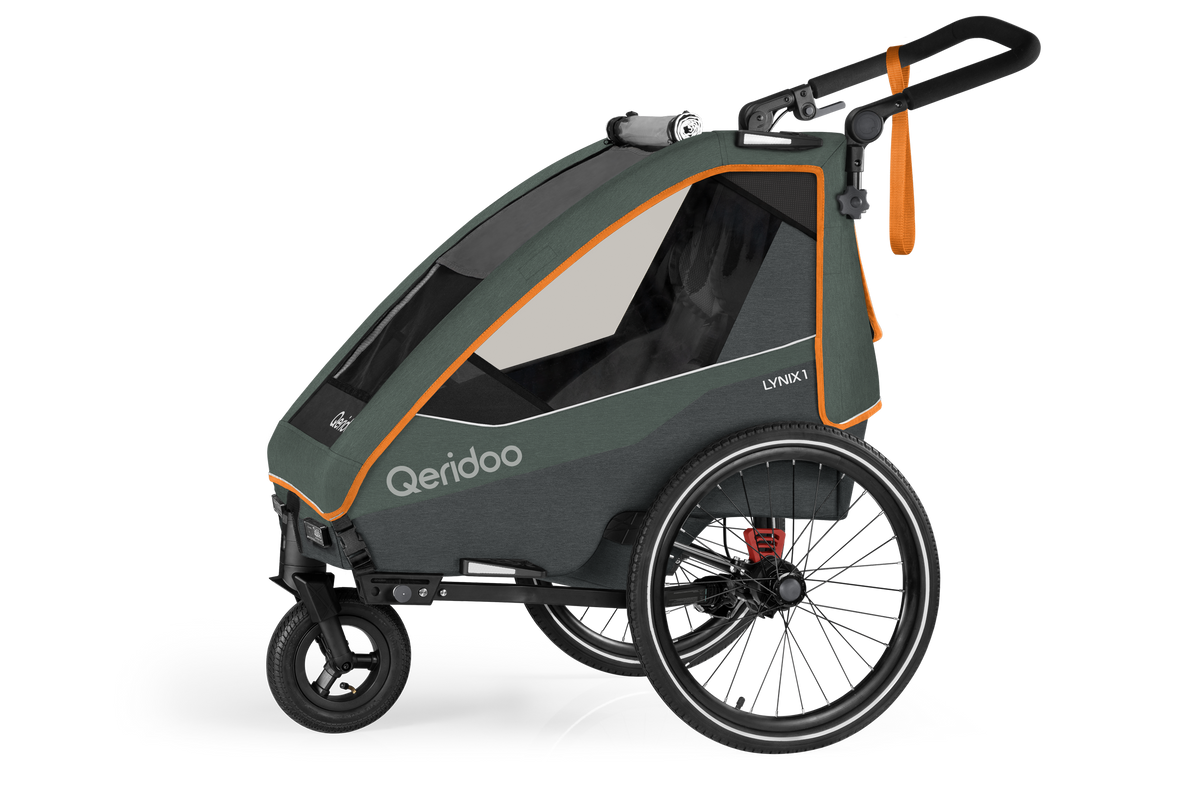

Product designation
Lynix 1 Forest Green
Article numbers
Product description
The Lynix is your all-rounder for everyday life and outings. Sporty in looks, comfortably equipped and ready for any route, ideal for families who love being on the go.
Intended use
The Qeridoo is designed as a bike trailer and additionally equipped with a buggy and walker mode.
The Qeridoo is intended exclusively for the private transport of one or two children on paved paths and must not be used under competition conditions. In addition, luggage may be carried in the compartments provided, as long as the permissible weight is observed and the luggage is securely stowed with even load distribution. Before using the Qeridoo, check which local regulations apply and how the product may be used.
Use on unpaved terrain, the transport of luggage in the passenger compartment, the transport of animals, as well as
commercial use are not permitted. The stated performance limits must always be observed and checked before every use. Children may be transported up to a maximum height of 105 cm. Only install and use original accessories and spare parts manufactured or recommended by Qeridoo. The use of other products, as well as any further modification carried out without the express written approval of the manufacturer, will lead to exclusion of liability in the event of accidents and defects.
Improper use
The Qeridoo must not be used for commercial purposes or under competition conditions. A careful riding style must always be ensured. This product is not suitable for jogging or skating without a jogger wheel. The jogger and skater modes are not included in the scope of the stroller certification.
Technical data
- Length trailer mode: 140 cm
- Empty weight trailer mode: 15 kg
- Maximum width: 67 cm
- Handlebar adjustment range: 68 – 125 cm
- Boot volume: 30 l
- Maximum body height: 105 cm
- Folded size assembled (L x W x H): 105 x 62 x 36 cm
- Packaging size (L x W x H): 102 x 33 x 57 cm
- Permissible total weight (Qeridoo + children + luggage): 50 kg
- Maximum payload (children + luggage): 35 kg
- Maximum payload in the boot (luggage): 5 kg
- Maximum payload in the footwell (luggage): 1 kg
- Maximum weight of small storage bags: 0.5 kg
- Maximum weight per child: 22 kg
- Age: 6 months – 4 years
- Permissible nose weight range (at tow bar head): 0 – 8 kg
- Minimum ambient temperature: -10°C
- Type of towing vehicle: bike, pedelec / e-bike (assistance up to 25 km/h)
- Maximum permitted top speed: 20 km/h, in curves max. 7 km/h
- Rear wheel size (towing vehicle): 25" – 29" (20" – with tow bar for 20" bikes (accessory))
When using accessories, their weight must be deducted from the payload. The empty weight of the Qeridoo with installed accessories plus payload must not exceed the permissible total weight. According to StVZO (German Road Traffic Licensing Regulations | valid in Germany) a maximum total weight of 40 kg applies to unbraked trailers.
Safety and warning instructions
WARNING!
- The safety and accident prevention regulations applicable in your region, as well as legal regulations such as the Straßenverkehrsordnung (StVO – German Road Traffic Code), must also be observed and, in case of doubt, take priority. Also inform yourself about country-specific regulations and traffic rules if you would like to take the Qeridoo on trips abroad. Make sure that the Qeridoo is only used by persons who, as defined below, are suitable to operate it. Users must have read and understood this user manual in full.
- Packaging materials and protective caps must be removed and disposed of in accordance with the environmental guidelines applicable in your region.
- The recommended tightening torques can be found at the following link: qeridoo.de/go/drehmomente
- All information on "Care & Maintenance" must be observed. Corrosion cannot be entirely ruled out. De-icing salts can lead to stress corrosion cracking.
- Never leave your child unattended. Do not let your child play with the product. The Qeridoo is not a toy and must not be misused as such. Accordingly, it is not permitted to attach the Qeridoo to a children's bike.
- Keep children away from the Qeridoo during assembly. When handling moving parts, take care not to pinch your hands and fingers. Before first use, check all screw and pin connections for a tight fit. Make sure your child is out of reach when folding the Qeridoo open and closed, in order to avoid injuries.
- This seating unit is not suitable for children under 6 months. Always use the restraint system.
- This product is not suitable for jogging or skating without a jogger wheel. The supplied 14'' jogger wheel makes skating & jogging possible. The jogger and skater modes are not included in the scope of the stroller certification.
- Always make sure the parking brake is engaged when placing your child in and taking your child out. Any loads attached to the handlebar and/or to the back of the backrest and/or to the sides impair the stability of the Qeridoo.
- Only install and use original accessories and spare parts manufactured or recommended by Qeridoo. The use of other products will lead to exclusion of liability.
- Signs of wear may appear at the connection point between the bike frame and the coupler. This does not constitute grounds for complaint. Do not use any tool that has previously come into contact with conventional steel. The smallest steel particles could lead to contact corrosion.
- For operation of the back light, the enclosed information from the manufacturer must be observed.
- Before use, make sure the brake is working properly. Despite a correct assembly procedure, the disc brake may start to rub. Readjust the brake calipers or have your trusted bike workshop help you.
DANGER!
- Before each use, make sure that all locks are engaged. Also wrap the safety strap of the tow bar around the tow bar so that in the ready position it does not hang down and cannot get caught on or drag across obstacles.
- Only one child may be transported in the one-seater and a maximum of two children in the two-seater. They must be secured with the harness system and wear suitable clothing as well as a bicycle helmet. Even load distribution must be ensured.
- The Qeridoo must not be used any further after an accident! Even if no damage is visible from the outside, the protective effect may be impaired.
- Before every ride, satisfy yourself that the Qeridoo is in proper and technically perfect condition. Carry out a visual inspection and pay particular attention to the "Ready to go?" section. Also check that the side fixation is closed and that the straps on the back of the seat are tightened.
- Always make sure that the safety strap is attached before using the Qeridoo in trailer mode. Additionally, take care that it cannot get into moving parts of the towing bike.
- Do not use a washer or similar at the connection point between the bike frame and the coupler, as this can impair the stability of the connection.
- Always make sure the foot parking brake audibly engages when it is operated. If it does not fully engage, the wheels are not securely locked and the Qeridoo can roll away.
Care and storage instructions
Care
After each use:
- Clean the interior of the cabin.
- Watch for heavy dirt and remove it as soon as possible.
After strong weather exposure:
- Carry out a thorough interior and exterior cleaning of the cabin.
- Care for all sliding or moving parts with silicone spray.
- Only fold the cabin together when it is cleaned and completely dry.
- Wipe the frame and the entire cover dry.
When not in use:
- Only store the Qeridoo in places with a storage temperature in the range of -23 °C to a maximum of 65 °C.
- The trailer should only be stored when dry.
- The storage location should be dry, well ventilated and protected from direct sunlight.
- At high storage temperatures, the wheels should be kept separately from the cabin, as the rubber of the tyres can cause odour development.
- Use a Qeridoo folding garage if the Qeridoo has to be stored outdoors.
Maintenance
Monthly (or every 200 km):
- Check the textile cover, all closures as well as the seats and safety harnesses for tears, wear and missing parts.
- Check all frame tubes as well as all connectors and fastening components for signs of wear and damage.
- Check all screw and pin connections for a tight fit.
- Clean the thru-axles of the wheels. Additionally spray the thru-axles with silicone spray.
Every six months (or every 500 km):
- Care for all sliding and moving parts with silicone spray.
- Carry out a thorough interior and exterior cleaning of the cabin.
- Carry out a check of the spoke tension, which must be between 90 and 100 kg.
Every 2 years (or every 2,000 km):
- Replace the leaf springs, as they are a wear part.
Every 3 years (or every 3,000 km):
- Have a complete inspection carried out by a specialist workshop at the latest every three years.
Every 4 years (or every 4,000 km):
Conformity & Safety
Manufacturer information
Qeridoo GmbH
Industriepark Nord 100
53567 Buchholz, Germany
www.qeridoo.de
Email: info@qeridoo.de
Fax: +49 (0) 2683 9451925
