Product designation

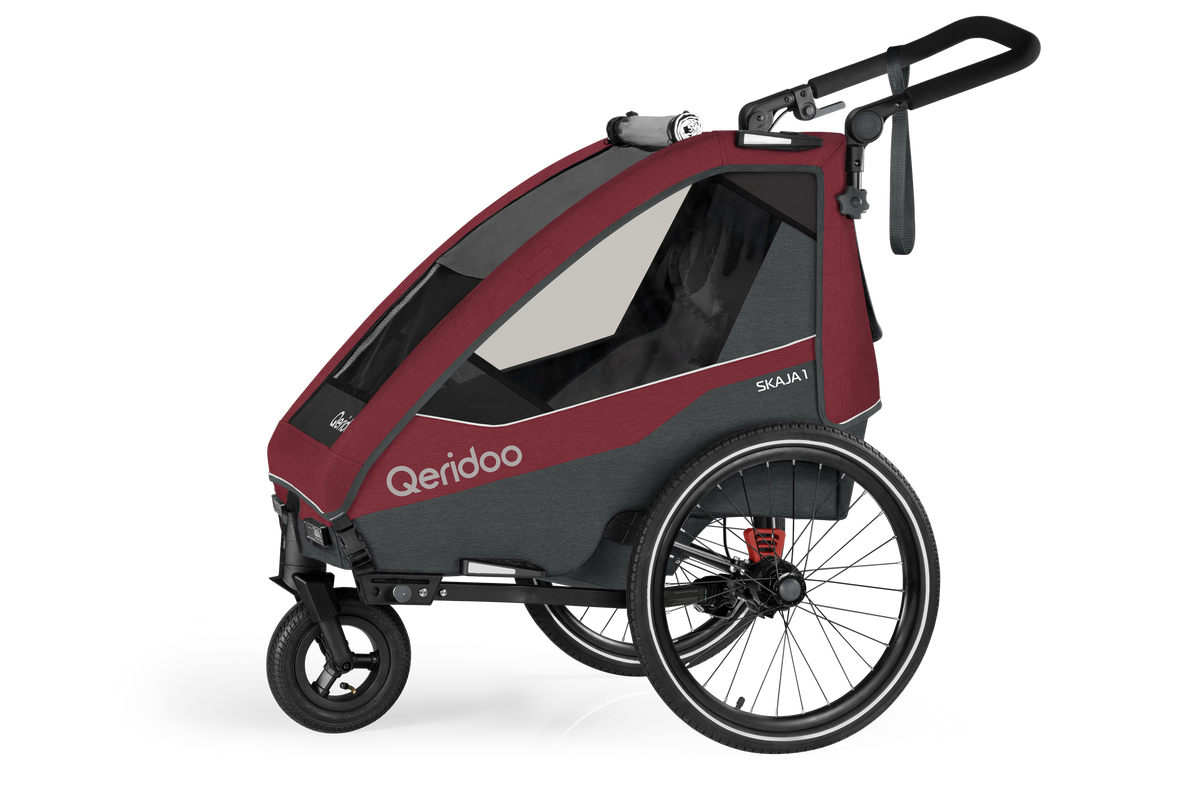

Skaja 1 Cayenne Red
Article numbers
Product description
The Skaja is your all-rounder for everyday life and excursions. Sporty in look, comfortably equipped and ready for every route, ideal for families who love being on the move.
Intended use
The Qeridoo is designed as a bike trailer and is equipped with an additional buggy and walker mode.
The Qeridoo is intended exclusively for the private transport of one or two children on paved paths and must not be used under competition conditions. In addition, luggage may be carried in the compartments provided, as long as the permissible weight is observed and the luggage is securely stowed with even load distribution. Before using the Qeridoo, check which local regulations apply and how the product may be used.
Not permitted are operation on unpaved terrain, the transport of luggage in the passenger compartment, the carriage of animals, as well as
commercial use. The specified performance limits must be strictly observed and checked before each use. Children up to a maximum height of 105 cm may be transported. Only fit and use original accessories and spare parts that have been manufactured or recommended by Qeridoo. The use of other products, as well as any further manipulation carried out without the express written approval of the manufacturer, leads to exclusion of liability in the event of accidents and defects.
Use other than intended
The Qeridoo must not be used for commercial purposes or under competition conditions. A careful driving style must always be ensured. Without a jogger wheel, this product is not suitable for jogging or skating. The jogger and skater modes are not covered by the stroller certification.
Technical data
- Length trailer mode: 140 cm
- Empty weight trailer mode: 15 kg
- Maximum clearance width: 67 cm
- Handlebar adjustment range: 68 – 125 cm
- Boot volume: 30 l
- Maximum body height: 105 cm
- Folded dimensions assembled (L x W x H): 105 x 62 x 36 cm
- Packaging dimensions (L x W x H): 102 x 33 x 57 cm
- Permissible total weight (Qeridoo + children + luggage): 50 kg
- Maximum payload (children + luggage): 35 kg
- Maximum payload in boot (luggage): 5 kg
- Maximum payload in footwell (luggage): 1 kg
- Maximum weight small-item pockets: 0.5 kg
- Maximum weight per child: 22 kg
- Age: 6 months – 4 years
- Permissible nose weight range (at tow bar head): 0 – 8 kg
- Minimum ambient temperature: -10°C
- Towing vehicle type: bicycle, pedelec / e-bike (assistance up to 25 km/h)
- Maximum permitted top speed: 20 km/h, in curves max. 7 km/h
- Rear wheel size (towing vehicle): 25" – 29" (20" – with tow bar for 20" bikes (accessory))
When using accessories, their weight must be deducted from the payload. The empty weight of the Qeridoo with fitted accessories plus payload must not exceed the permissible total weight. According to StVZO (German road traffic licensing regulations | valid in Germany), a maximum total weight of 40 kg applies to unbraked trailers.
Safety and warning notices
WARNING!
- The safety and accident prevention regulations in force in your region, as well as legal regulations such as the road traffic regulations (StVO), must additionally be observed and take priority in case of doubt. Also inform yourself about country-specific regulations and traffic rules if you want to take the Qeridoo on trips abroad. Make sure that the Qeridoo is only used by persons who, as defined below, are suitable for its operation. Users must have completely read and understood this user manual.
- Packaging materials and protective caps must be removed and disposed of in accordance with the environmental guidelines in force in your region.
- The recommended tightening torques can be found at the following link: qeridoo.de/go/drehmomente
- All information on "care & maintenance" must be observed. Corrosion cannot be completely ruled out. De-icing salts can lead to stress corrosion cracking.
- Never leave your child unattended. Do not let your child play with the product. The Qeridoo is not a children's toy and must not be used as such. Accordingly, it is not permitted to attach the Qeridoo to a children's bike.
- Keep children away from the Qeridoo during assembly. When handling moving parts, take care not to pinch your hands and fingers. Before first use, check that all screw and pin connections are firmly seated. Make sure that the child is out of reach when the Qeridoo is being unfolded and folded to avoid injury.
- This seat unit is not suitable for children under 6 months. Always use the restraint system.
- Without a jogger wheel, this product is not suitable for jogging or skating. The supplied 14'' jogger wheel enables skating & jogging. The jogger and skater modes are not covered by the stroller certification.
- Always make sure that the parking brake is engaged when placing the child in and taking the child out. Any loads attached to the handlebar and/or the back of the backrest and/or the sides impair the stability of the Qeridoo.
- Only fit and use original accessories and spare parts that have been manufactured or recommended by Qeridoo. The use of other products leads to exclusion of liability.
- Signs of wear may occur at the connection point between bike frame and coupler. This does not constitute grounds for complaint. Do not use any tools that have previously been in contact with conventional steel. The smallest steel particles could lead to contact corrosion.
- To operate the rear light, the manufacturer's enclosed information must be observed.
- Before use, make sure that the brake works properly. Despite correct assembly, the disc brake may start to rub. Readjust the brake calipers or have your trusted bike workshop help you.
DANGER!
- Before each use, make sure that all locks are engaged. Also wrap the tether strap of the tow bar around the tow bar so that it does not hang down in the standby position and cannot get caught on obstacles or drag.
- Only one child may be transported in the one-seater and a maximum of two children in the two-seater. They must be secured by the harness system and wear suitable clothing as well as a bicycle helmet. An even load distribution must be ensured.
- The Qeridoo must not be used further after an accident! Even if no damage is externally visible, the protective effect may be impaired.
- Before every ride, check that the Qeridoo is in proper and technically perfect condition. Carry out a visual inspection and pay particular attention to the section "Am I ready to roll?". Also check that the side fixings are closed and the belt straps on the back of the seat bench are tightened.
- Always make sure that the tether strap is fastened before using the Qeridoo in trailer mode. In addition, take care that it cannot get caught in moving parts of the towing bike.
- Do not use a washer or similar at the connection point between bike frame and coupler, as this can impair the stability of the connection.
- Always make sure that the foot parking brake audibly engages when it is operated. If it does not fully engage, the wheels are not safely locked and the Qeridoo can roll away.
Care and storage instructions
Care
After every use:
- Clean the interior of the cabin.
- Look out for heavy soiling and remove it as soon as possible.
After strong weather influences:
- Carry out a thorough interior and exterior cleaning of the cabin.
- Care for all sliding or moving parts with silicone spray.
- Only fold the cabin together when it has been cleaned and is completely dry.
- Wipe the frame and the entire cover dry.
When not in use:
- Only store the Qeridoo in places with a storage temperature in the range of -23 °C to a maximum of 65 °C.
- The trailer should only be stored when dry.
- The storage place should be dry, well ventilated and protected from direct sunlight.
- At high storage temperatures, the running wheels should be stored separately from the cabin, as the tyre rubber can cause odour formation.
- Use a Qeridoo folding garage if the Qeridoo has to be stored outdoors.
Maintenance
Monthly (or every 200 km):
- Check the fabric cover, all fastenings as well as the seats and safety belts for cracks, wear and missing parts.
- Check all frame tubes as well as all connectors and fastening components for signs of wear and damage.
- Check that all screw and pin connections are firmly seated.
- Clean the thru-axles of the running wheels. Additionally, spray the thru-axles with silicone spray.
Every six months (or every 500 km):
- Care for all sliding and moving parts with silicone spray.
- Carry out a thorough interior and exterior cleaning of the cabin.
- Check the spoke tension, which must be between 90 and 100 kg.
Every 2 years (or every 2,000 km):
- Replace the leaf springs, as they are a wear part.
Every 3 years (or every 3,000 km):
- At the latest every three years, have a complete inspection carried out by a specialist workshop.
Every 4 years (or every 4,000 km):
Conformity & Safety
This product has been developed and manufactured taking into account the applicable EU safety requirements. The materials used comply with the relevant safety and quality standards.
Manufacturer information
Qeridoo GmbH
Industriepark Nord 100
53567 Buchholz, Germany
www.qeridoo.de
Email: info@qeridoo.de
Fax: +49 (0) 2683 9451925
