Product designation
Sportrex 2 Limited Edition Jeans Blue
Article numbers
Product description
The Sportrex is your all-rounder for everyday life and excursions. Sporty in look, comfortably equipped and ready for every route — ideal for families who love being on the move.
Intended use

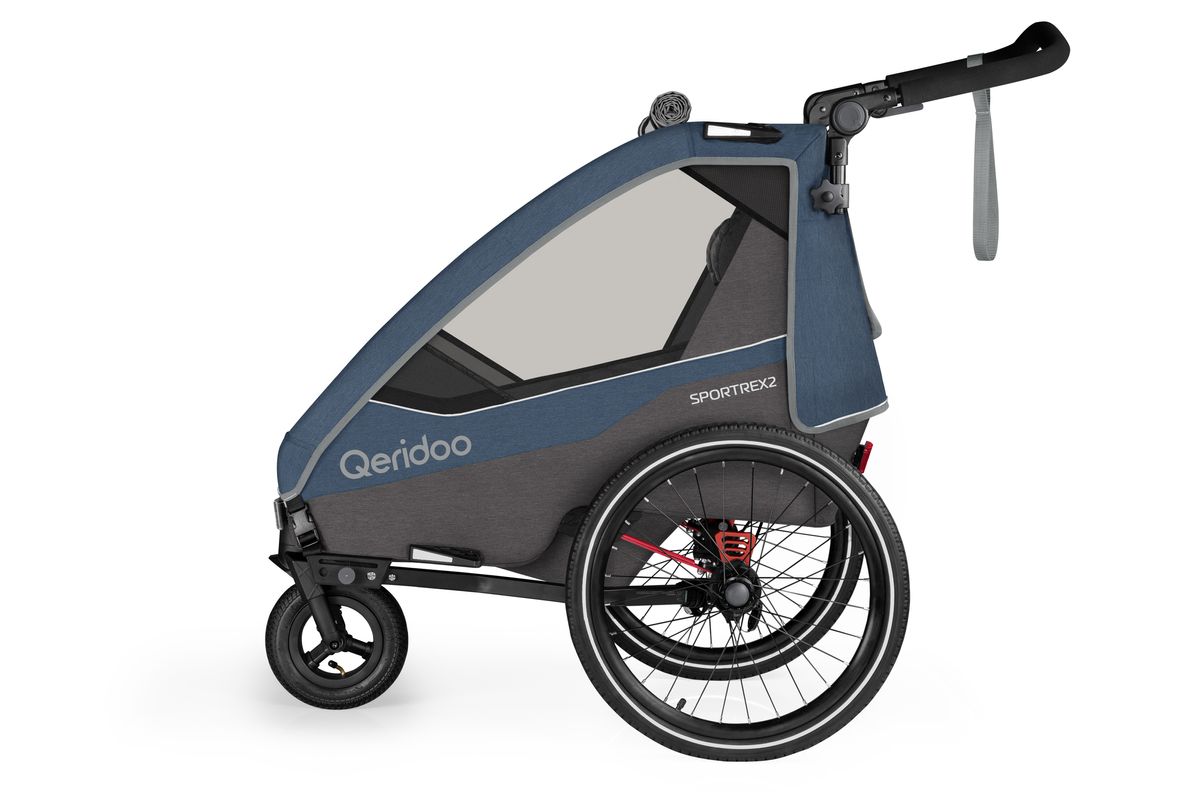

The Qeridoo is designed as a bike trailer and equipped with an additional stroller and walker mode.
The Qeridoo is intended solely for the private transport of one or two children on paved paths and must not be used under competitive conditions. Luggage may also be carried in the designated compartments, provided the permitted weight is observed and the luggage is securely stowed with even load distribution. Before using the Qeridoo, check which local regulations apply and how the product may be used.
Operation on unpaved terrain, the transport of luggage in the passenger compartment, the carrying of animals, as well as
commercial use are not permitted. The specified performance limits must be strictly observed and checked before each use. Children up to a maximum height of 105 cm may be transported. Only mount and use original accessories and spare parts manufactured or recommended by Qeridoo. The use of other products, as well as any further manipulation carried out without the express written permission of the manufacturer, leads to exclusion of liability in the event of accidents and defects.
Improper use
The Qeridoo must not be used for commercial purposes or under competitive conditions. A defensive riding style must always be ensured. This product is not suitable for jogging or skating without a jogger wheel. The jogger and skater modes are not included in the scope of the stroller certification.
Technical data

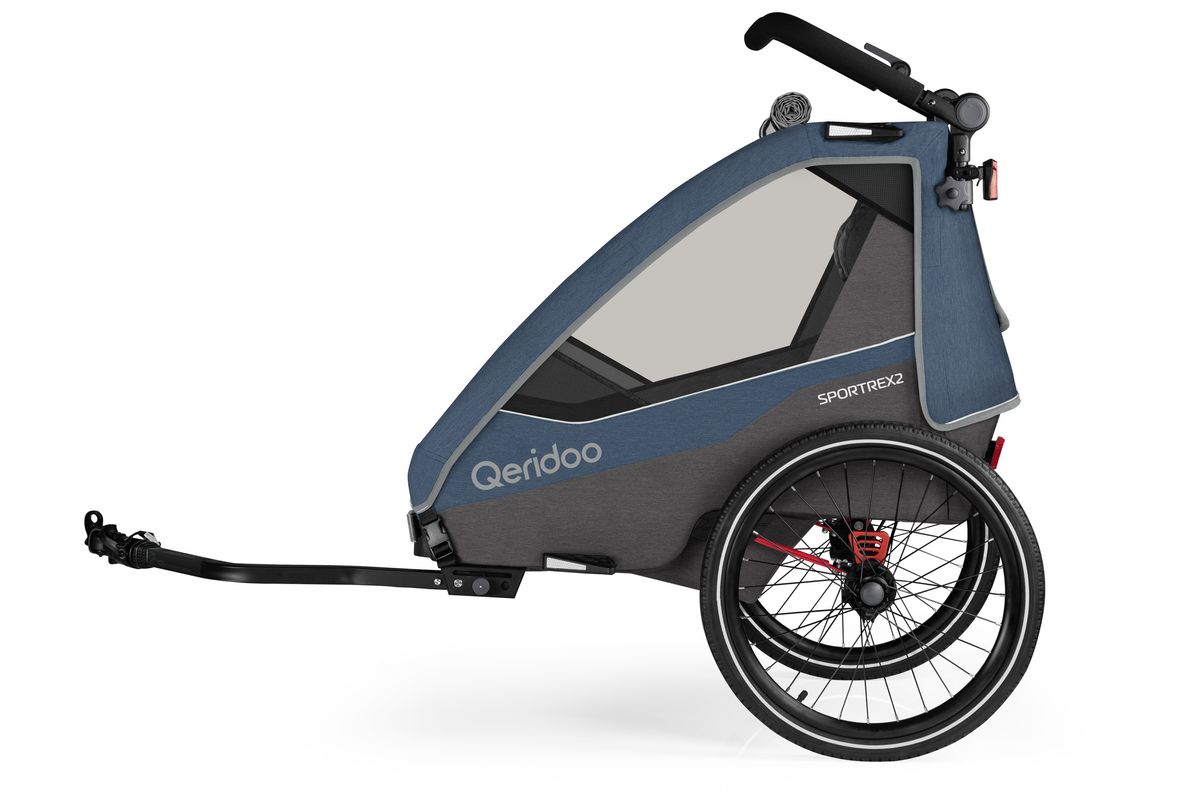

- Length trailer mode: 140 cm
- Empty weight trailer mode: 16.5 kg
- Maximum width: 81 cm

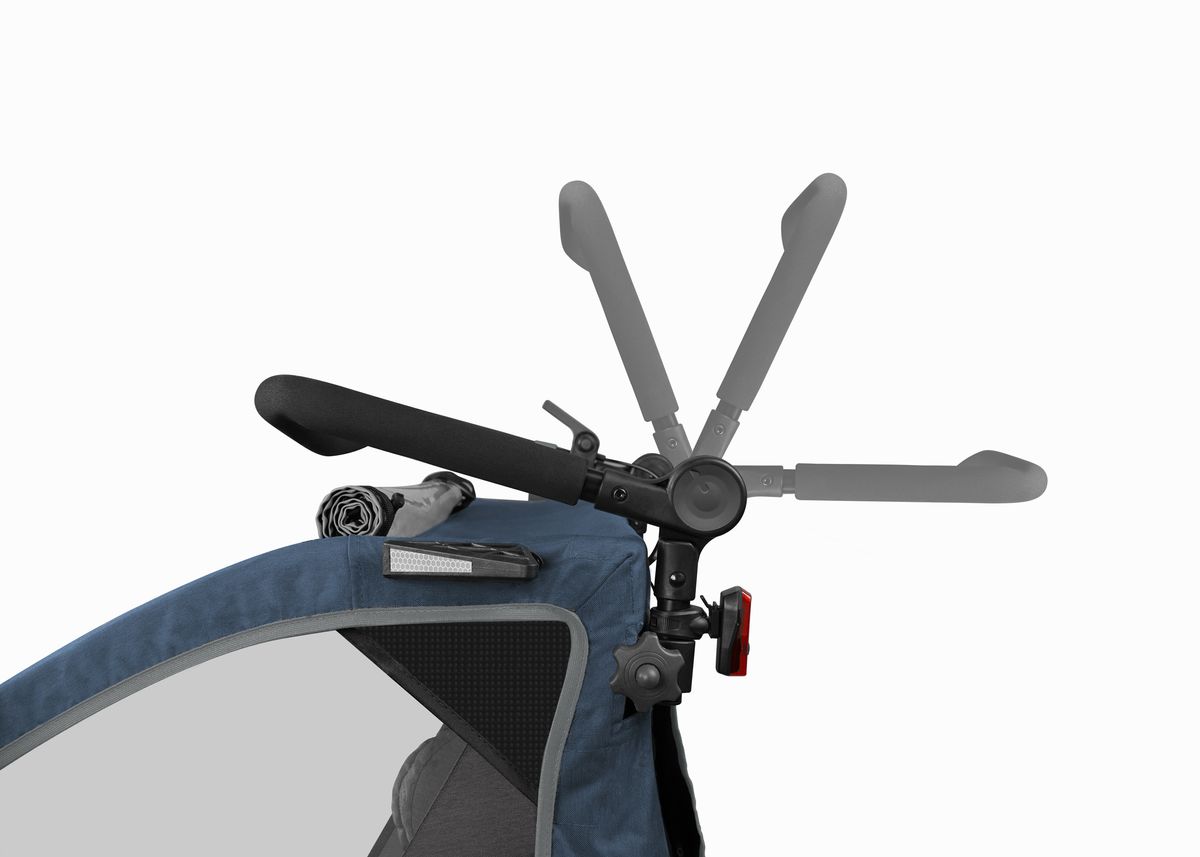

- Handlebar adjustment range: 68 – 125 cm

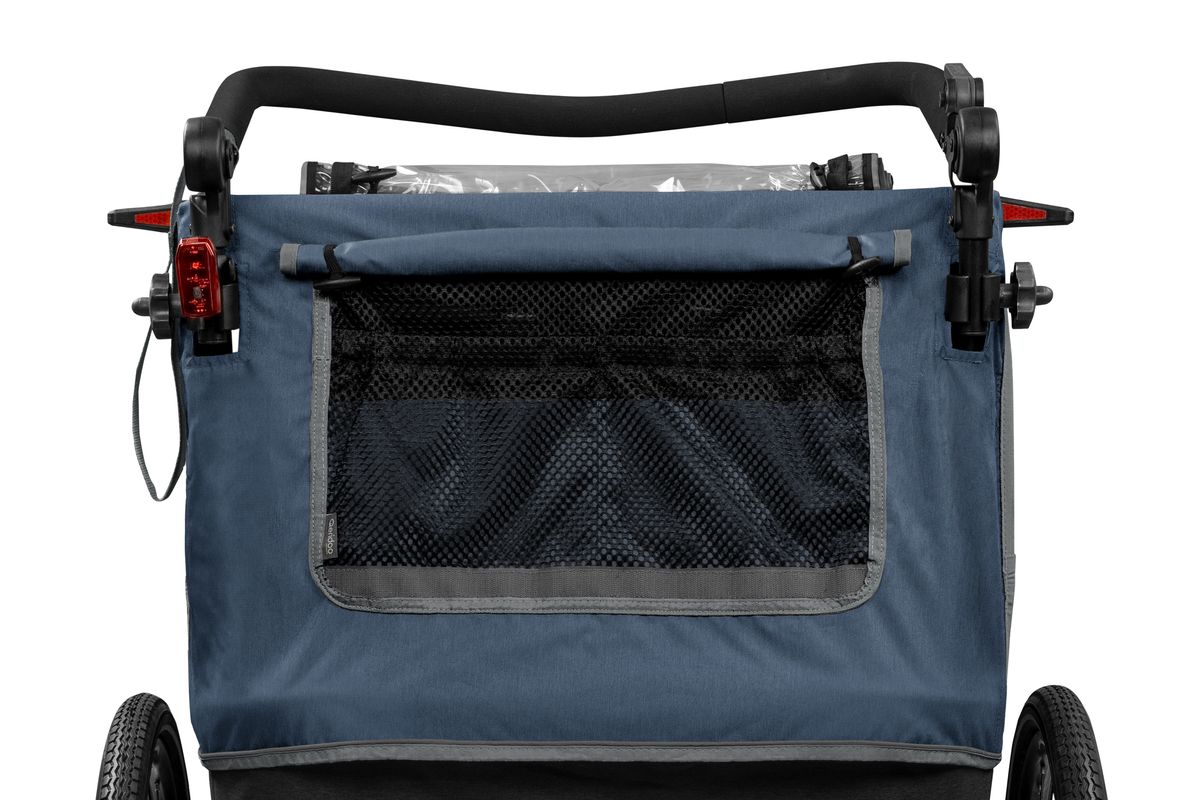

- Boot volume: 40 l
- Maximum body height: 105 cm

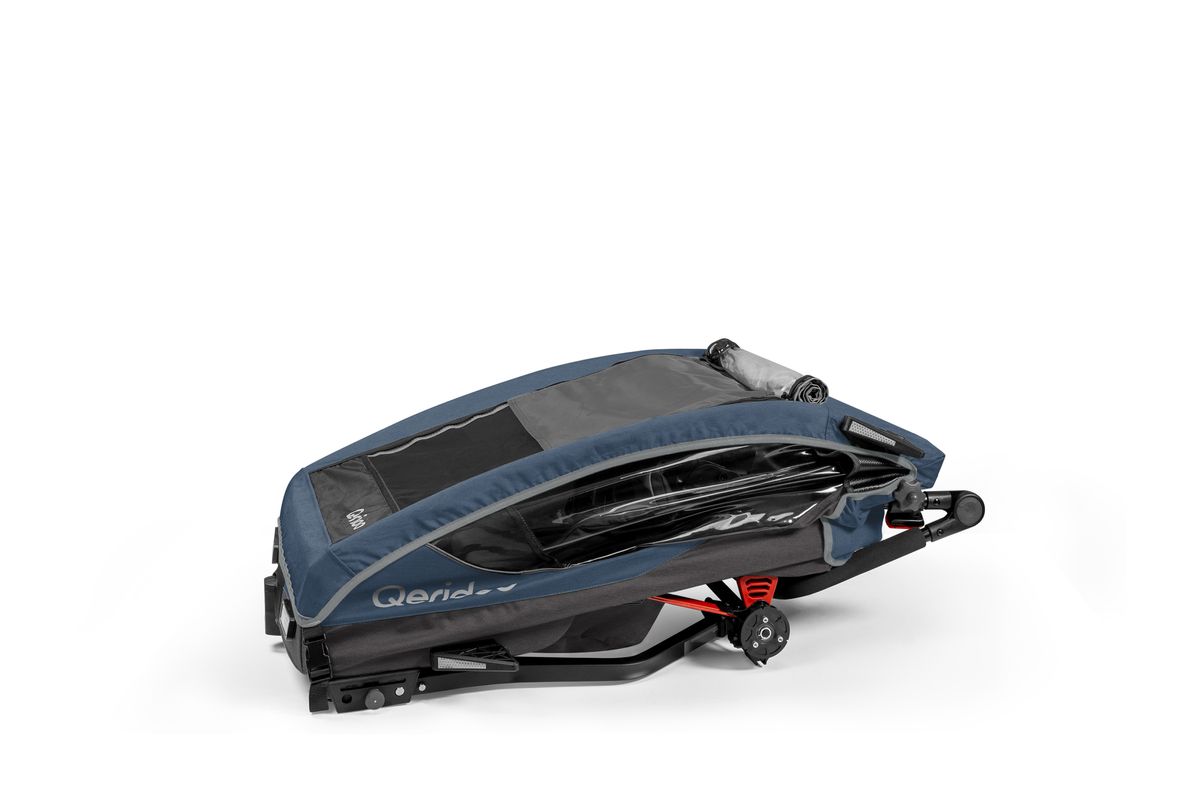

- Folded dimensions assembled (L x W x H): 105 x 76 x 36 cm
- Packaging dimensions (L x W x H): 102 x 33 x 65.5 cm
- Permissible total weight (Qeridoo + children + luggage): 60 kg
- Maximum payload (children + luggage): 43.5 kg
- Maximum payload in the boot (luggage): 5 kg
- Maximum payload in the footwell (luggage): 1 kg
- Maximum weight small storage bags: 0.5 kg
- Maximum weight per child: 22 kg
- Maximum weight both children: 43.5 kg
- Age: 6 months – 4 years
- Permissible nose weight range (at tow bar head): 0 – 8 kg
- Minimum ambient temperature: -10 °C
- Type of towing vehicle: bicycle, pedelec / e-bike (assistance up to 25 km/h)
- Maximum permitted top speed: 20 km/h, max. 7 km/h in curves
- Rear wheel size (towing vehicle): 25" – 29" (20" – with tow bar for 20" bikes (accessory))
When using accessories, these must be deducted from the payload. The empty weight of the Qeridoo with fitted accessories plus payload must not exceed the permissible total weight. According to the StVZO (Road Traffic Licensing Regulations | valid in Germany), a maximum total weight of 40 kg applies to unbraked trailers.
Safety and warning instructions
WARNING!
- The safety and accident prevention regulations applicable in your region, as well as legal regulations such as the road traffic regulations (StVO – valid in Germany), must be additionally observed and, in case of doubt, take priority. Also inform yourself about country-specific regulations and traffic rules if you intend to take the Qeridoo on trips abroad. Make sure that the Qeridoo is only used by persons who, as defined below, are suitable for its operation. Users must have fully read and understood this user manual.
- Packaging materials and protective caps must be removed and disposed of in accordance with the environmental guidelines applicable in your region.
- The recommended tightening torques can be found at the following link: qeridoo.de/go/drehmomente
- All information on "Care & Maintenance" must be observed. Corrosion cannot be entirely ruled out. De-icing salts can lead to stress corrosion cracking.
- Never leave the child unattended. Do not let the child play with the product. The Qeridoo is not a children's toy and must not be used as such. Accordingly, it is not permitted to attach the Qeridoo to a child's bike.
- Keep children away from the Qeridoo during assembly. When handling movable components, take care not to pinch your hands and fingers. Before first use, check all screw and split-pin connections for a tight fit. Make sure that the child is out of reach when folding and unfolding the Qeridoo in order to avoid injury.
- This seat unit is not suitable for children under 6 months. Always use the restraint system.
- This product is not suitable for jogging or skating without a jogger wheel. The supplied 14'' jogger wheel enables skating & jogging. The jogger and skater modes are not included in the scope of the stroller certification.
- Always make sure the parking brake is engaged when placing the child in or taking it out. Any loads attached to the handlebar and/or to the back of the seat back and/or to the sides impair the stability of the Qeridoo.
- Only mount and use original accessories and spare parts manufactured or recommended by Qeridoo. The use of other products leads to exclusion of liability.
- Signs of wear may occur at the connection point between the bicycle frame and the coupler. This does not constitute grounds for complaint. Do not use any tool that has previously been in contact with conventional steel. The smallest steel particles could cause contact corrosion.
- For the operation of the rear light, observe the manufacturer's information provided.
- Before use, make sure the brake is working properly. Despite the correct assembly procedure, the disc brake may start to rub. Readjust the brake calipers or have your trusted bicycle workshop help you.
DANGER!
- Before every use, make sure that all locks are engaged. Also wind the safety strap of the tow bar around the tow bar so that, in the standby position, it does not hang down and cannot get caught or drag on obstacles.

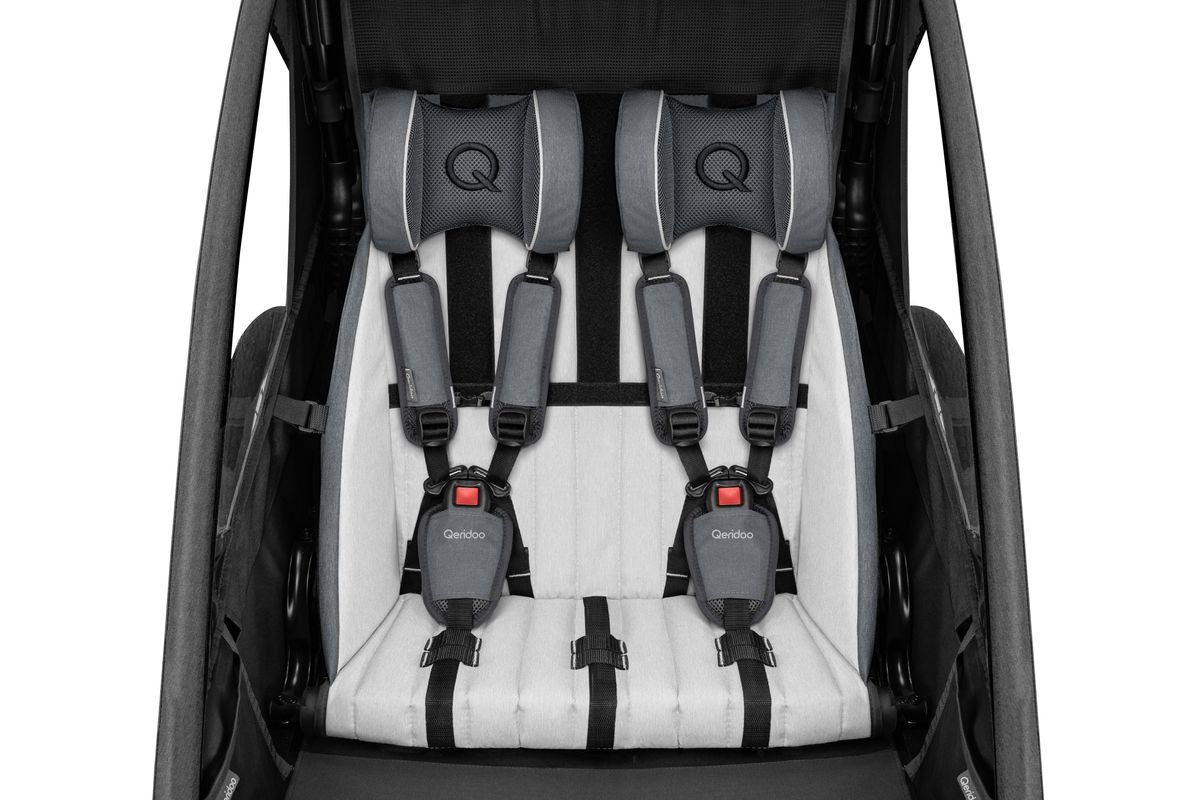

- Only one child may be transported in the one-seater and a maximum of two children in the two-seater. They must be secured by means of the harness system and wear suitable clothing as well as a bicycle helmet. A balanced load distribution must be ensured.
- The Qeridoo must not be used after an accident! Even if no damage is visible from the outside, the protective effect may be impaired.
- Before every ride, make sure the Qeridoo is in proper and technically perfect condition. Carry out a visual inspection and pay particular attention to the "Am I ready to go?" section. Also check that the side fixation is closed and the webbing on the back of the seat is tightened.
- Always make sure the safety strap is attached before using the Qeridoo in trailer mode. Also make sure it cannot get into the moving parts of the towing bicycle.
- Do not use a washer or similar at the connection point between the bicycle frame and the coupler, as this can impair the stability of the connection.
- Always make sure the parking brake foot lever audibly engages when activated. If it does not fully engage, the wheels are not securely locked and the Qeridoo may roll away.
Care and storage instructions
Care
After every use:
- Clean the inside of the cabin.
- Watch out for coarse soiling and remove it immediately if possible.
After heavy weather exposure:
- Carry out a thorough inside and outside cleaning of the cabin.
- Care for all sliding or moving parts with silicone spray.
- Only fold up the cabin when it has been cleaned and is completely dry.
- Wipe the frame and the entire cover dry.
When not in use:
- Only store the Qeridoo in places with a storage temperature in the range from -23 °C up to a maximum of 65 °C.
- The trailer should only be stored in a dry condition.
- The storage location should be dry, well ventilated and protected from direct sunlight.
- At high storage temperatures, the wheels should be kept separately from the cabin, as the rubber of the tyres can lead to odour formation.
- Use a Qeridoo folding garage if the Qeridoo has to be stored outdoors.
Maintenance
Monthly (or every 200 km):
- Check the textile cover, all fasteners as well as the seats and safety harnesses for tears, wear and missing parts.
- Check all frame tubes as well as all connectors and fastening components for signs of wear and damage.
- Check all screw and split-pin connections for a tight fit.
- Clean the thru-axles of the wheels. Additionally spray the thru-axles with silicone spray.
Every six months (or every 500 km):
- Care for all sliding and moving parts with silicone spray.
- Carry out a thorough inside and outside cleaning of the cabin.
- Carry out a check of the spoke tension, which must be between 90 and 100 kg.
Every 2 years (or every 2,000 km):
- Replace the leaf springs, as they are a wear part.
Every 3 years (or every 3,000 km):
- At the latest every three years, have a complete inspection carried out by a specialist workshop.
Every 4 years (or every 4,000 km):
Conformity & Safety
This product has been developed and manufactured in accordance with the applicable EU safety requirements. The materials used comply with the relevant safety and quality standards.
Manufacturer information
Qeridoo GmbH
Industriepark Nord 100
53567 Buchholz, Germany
www.qeridoo.de
E-mail: info@qeridoo.de
Fax: +49 (0) 2683 9451925
